Brackets for Dimetix Lasers

Adjustable Mounting Bracket
  • Part # 000812-02
  • Applicable for all D-Series Lasers
  • Ideal for harsh environments, such as steel mills and atop cranes
  • Allows for dual-axis alignment
  • Ability to pivot a full 90° for wall mounting
  • 300-Series Stainless Steel, 2.5mm thick
  • Manufactured by Laser-View Technologies
L-Bracket
  • Part # 000968-02
  • Applicable for all D-Series Lasers
  • Allows for dual-axis alignments
  • 300-Series Stainless Steel, 1.5mm thick
  • Manufactured by Laser-View Technologies
Alignment Bracket
  • Part # 500308
  • Applicable for all D-Series Lasers
  • Steel, zinc-plated
  • Allows for dual-axis alignment +/-4°; planar adjustment permits dual-axis adjustment simultaneously via spring tensioned adjustment bolts

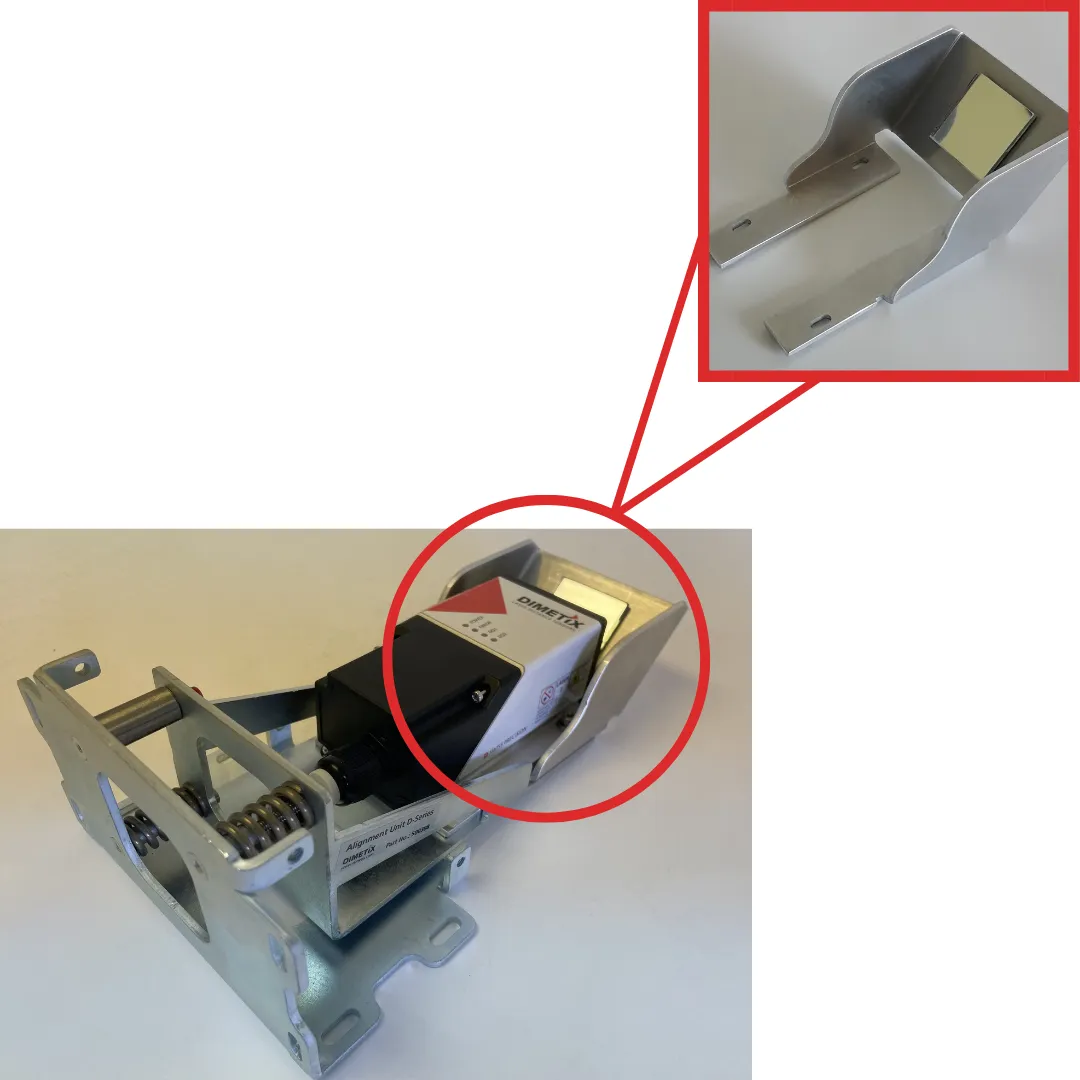

45° Dimetix Laser Mirror Assembly (Part # 001437)
45° Laser Mirror Assembly
  • Part # 001437
  • Applicable for all D-Series Lasers
  • Aluminum Construction
  • Allows for laser measurement at 90° by attaching to Dimetix Laser Alignment Bracket (Part #500308)
  • Manufactured by Laser-View Technologies
Sun Shroud
  • Part # 000816
  • Bolts to Adjustable Mounting Bracket (Part # 000812-02)
