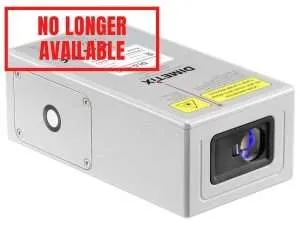

The Dimetix DLS and FLS series long range laser distance sensors have been the workhorses in industry for over 10 years. Laser-View Technologies has been placing these in some of the most challenging environments since 2007 and the results have been stellar.
*DLS and FLS models are EOL as of July 2019.

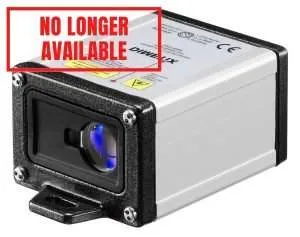

The Dimetix EDS-C30 laser distance sensor is our entry level offering. With a smaller footprint, less cost, and a robust 30 meters of measurement range on natural surfaces, the EDS is a good fit for many applications requiring more basic sensing.
*EDS models are EOL as of July 2020.
| Model | FLS-C 10 End of Life (EOL) | FLS-CH 10 End of Life (EOL) | DLS-C 30 End of Life (EOL) | DLS-C 15 End of Life (EOL) | EDS-C 30 End of Life (EOL) |
| Part Number | 600502 | 600504 | 500621 | 500622 | 550502 |
| Specification | |||||
| Typical accuracy @ ±2σ (@ ±1σ) | ±1 mm | ±1 mm | ±3 mm | ±1.5 mm | ±3 mm |
| Typical repeatability @ ±2σ (@ ±1σ) | ±0.3 (±0.15) mm | ±0.3 (±0.15) mm | ±0.5 mm | ±0.4 mm | 1.5 mm |
| Measuring range on natural surfaces | 0.05…~65 m | 0.05…~65 m | 0.05…~65 m | 0.05…~65 m | 0.05…~30 m |
| Measuring range on reflective foil | ~0.5…500 m | ~0.5…500 m | ~25…150 m | ~25…150 m | |
| Max. measuring rate | 200 Hz | 200 Hz | 6 Hz | 6 Hz | 3 Hz |
| Operating temperature | -10…+50°C | -40…+50°C | -10…+50°C | -10…+50°C | -10…+50°C |
| Degree of protection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Power supply | 9…30 VDC (0.6A @ 24 VDC) | 24…30 VDC (2.5A @ 24 VDC) | 9…30 VDC (0.6A @ 24 VDC) | 9…30 VDC (0.6A @ 24 VDC) | 24…30 VDC (0.5A @ 24 VDC) |
| Laser red, visible (Laser Class 2, <1mW) | Cl2 | Cl2 | Cl2 | Cl2 | Cl2 |
| Typical diameter of laser dot @ 10, 50, 100 m | 8mm, 25mm, 40mm | 8mm, 25mm, 40mm | 8mm, 25mm, 40mm | 8mm, 25mm, 40mm | 8mm, 25mm, 40mm |
| Dimension (L x W x H) | 150x80x55mm | 150x80x55mm | 150x80x55mm | 150x80x55mm | 106x62x56mm |
| Weight | 690 g | 720 g | 690 g | 690 g | 280 g |
| Interfaces | |||||
| Analog output, programmable | 0/4…20 mA | 0/4…20 mA | 0/4…20 mA | 0/4…20 mA | 0/4…20 mA |
| Max. error analog output | ±0.1 % | ±0.1 % | ±0.2 % | ±0.2 % | ±0.3 % |
| Digital input, programmable | 1 | 1 | 1 | 1 | n/a |
| Digital output, programmable / error display | 2 / 1 | 2 / 1 | 2 / 1 | 2 / 1 | n/a |
| Serial Interfaces | RS-232, RS-422 | RS-232, RS-422 | RS-232, RS-422 | RS-232, RS-422 | n/a |
| Encoder output | SSI | SSI | n/a | ||
| Industrial interfaces (optional external) | PROFIBUS | PROFIBUS | PROFIBUS | PROFIBUS | n/a |
| Connection | DB 15 connector | DB 15 connector | DB 15 connector | DB 15 connector |
|---|---|---|---|---|
| Screw terminals | Screw terminals | Screw terminals | Screw terminals |
We encourage customers interested in this family of laser sensors to consider using our newest D-Series Laser in new applications, as they provide superior measurement robustness and a host of interface options.
